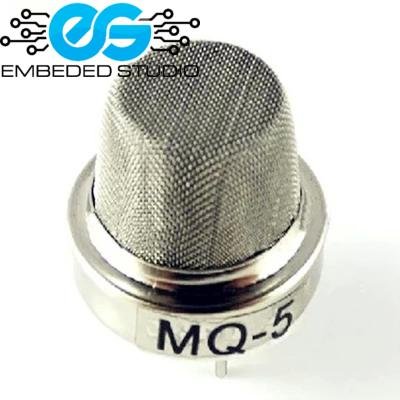

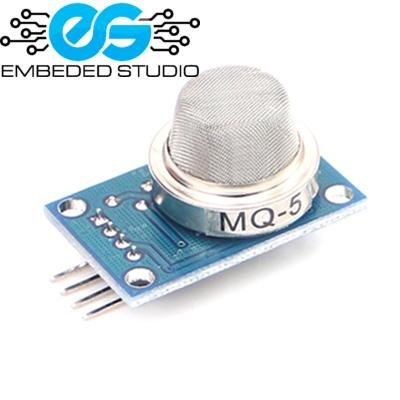

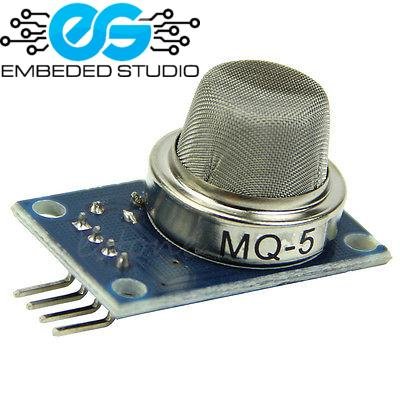

MQ-5 LPG Gas Sensor
MQ5 LPG Gas Sensor Features:
- Good sensitivity to Combustible gas in a wide range
- High sensitivity to Methane, Butane and Propane
- Long life and low cost
- Simple drive circuit
Specifications:
- Detection Range: 100 – 10,000 ppm iso-butane propane
- Fast Response Time: <10s
- Heater Voltage: 5.0V
- Dimensions: 18mm Diameter, 17mm High excluding pins, Pins – 6mm High
₨225

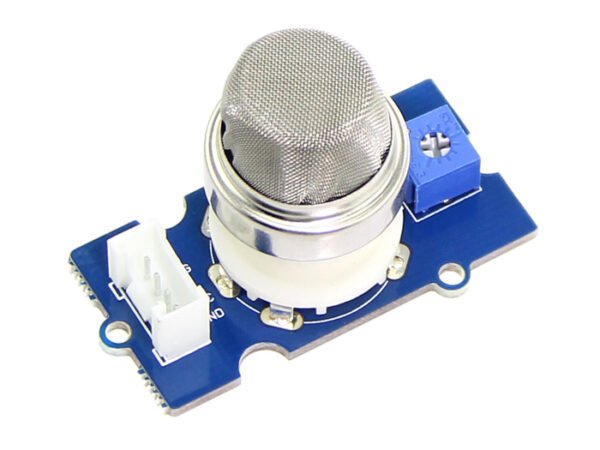

CompareMQ5 LPG Gas Sensor is useful for gas leakage detection (in the home and industry). It is suitable for detecting H2, LPG, CH4, CO, and Alcohol. Due to its high sensitivity and fast response time, measurements can be taken as soon as possible. The sensitivity of the sensor can be adjusted by using the potentiometer.
MQ5 LPG Gas Sensor is useful for gas leakage detection (in the home and industry). It is suitable for detecting H2, LPG, CH4, CO, and Alcohol. Due to its high sensitivity and fast response time, measurements can be taken as soon as possible. The sensitivity of the sensor can be adjusted by using the potentiometer.
