LCDs
Showing 1–15 of 16 results
-
-
LCDs
2.4 INCH TFT LCD FOR ARDUINO
- 2.4″ diagonal LCD TFT display
- 240×320 resolution
- 5V compatible! Use with 3.3V or 5V logic
- Onboard 3.3V 300mA LDO regulator
- 8 bit digital interface, plus 4 control lines
- 4-wire resistive touchscreen
- Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the microSD
SKU: n/a -
LCDs

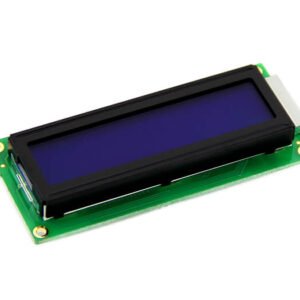

LCD (Blue/Green) 16×2
Specification
- Compatible with Arduino LiquidCrystal Library
- LCD Display Mode: STN, Positive, Transflective
- Viewing Angle: 6:00
- Driving Method : 1/16 duty, 1/5 bias
- Back Light : Yellow-Green LED backlight
- Text Color: Black
- Outline Dimension: 80 x 36 x 15.8 MAX
- Character Res: 16 x 2
- Driver Voltage: 5 VDC
SKU: n/a -
LCDs

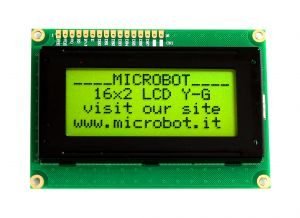

LCD (Blue/Green) 16×4
FEATURES
- Type: Character
- Display format: 16 x 4 characters
- Built-in controller: ST 7066 (or equivalent)
- Duty cycle: 1/16 • 5 x 8 dots includes cursor
- + 5 V power supply (also available for + 3 V)
- B/L to be driven by pin 1, pin 2, pin 15, pin 16 or A and K
- N.V. optional for + 3 V power supply
SKU: n/a -
LCDs
LCD (Blue/Green) 20×2
FEATURES
- Type: Character
- Display format: 20 x 2 characters
- Built-in controller: ST 7066 (or equivalent)
- Duty cycle: 1/16
- 5 x 8 dots includes cursor
- + 5 V power supply (also available for + 3 V)
- LED can be driven by pin 1, pin 2, pin 15, pin 16 or A and K
- N.V. optional for + 3 V power supply
SKU: n/a -
LCDs
LCD (Blue/Green) 20×4
Pinout
Pin Symbol Function 1 Vss ground (0 V) 2 Vdd 5 V logic supply voltage 3 Vo contrast adjustment 4 RS H/L register select signal 5 R/W H/L read/write signal 6 E H/L enable signal 7-14 DB0 – DB7 H/L data bus for 4- or 8-bit mode 15 A (LED+) backlight anode 16 K (LED-) backlight cathode SKU: n/a -
LCDs

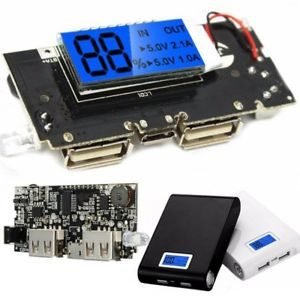

LCD Display Dual USB 5V 1A 2.1A Mobile Power Bank
Motherboard comes with protection function: Charging overcharge protection,
over-discharge protection, over-current protection.
Intelligent output device after charging full, automatically stop charging,
to prevent mobile phones overcharge.
Output voltage and current stable, will not harm user devices.
SKU: n/a -
Arduino, LCDs, Modules/Motors

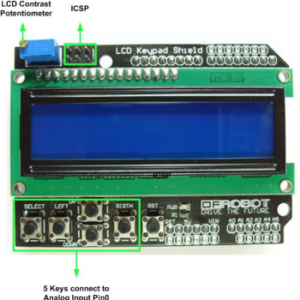

LCD Keypad Shield LCD1602
The arduino LCD Keypad shield is developed for Arduino compatible boards, to provide a user-friendly interface that allows users to go through the menu, make selections etc. It consists of a 1602 white character blue backlight LCD. The keypad consists of 5 keys — select, up, right, down and left. To save the digital IO pins, the keypad interface uses only one ADC channel. The key value is read through a 5 stage voltage divider.
SKU: 450 -
LCDs

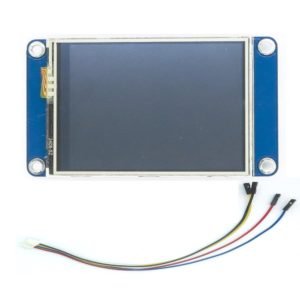

Nextion NX8048T050 – 5.0″ LCD TFT HMI Intelligent Touch Display
- Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2, Arduino
- 800 x 480 Resolution
- RGB 65K true to life colours
- TFT Screen with integrated 4-wire Resistive Touch Panel For Raspberry Pi and Arduino
- Easy 4 pin interface to any TTL Serial Host For Arduino
- 16M Flash memory for User Application Code and Date
- On board micro-SD card for firmware upgrade
- Visual Area:108mm(L)×64.8mm(W)
- Adjustable Brightness:0~230 nit, the interval of adjustment is 1%
- 5V410mA power consumption
- CE/EMC, RoHS certified
SKU: n/a -
-
LCDs
Nokia 5110 MonoChrome LCD
These displays were used in old Nokia 5110/3310 cell phones (before the smart-phone fad turned every cell phone into a TV). It’s a 84×48 pixel monochrome LCD display.
There’s no such thing as a ‘new’ Nokia 5110 display, but the scratches are not noticeable when in use.SKU: n/a
